McCullochs has been working with the drilling industry for over 30 years manufacturing & supplying drilling equipment and accessories through our business unit McCullochs Drilling & Boring (D&B)
McCULLOCH dR800 MKII
McCullochs DR800 Mk2 Drilling Rig has been designed and manufactured for the purpose of low impact exploration drilling of hole diameters not exceeding 300mm*
Standard Specification:
4.58 Tonne Pull Down Force
12.23 Tonne Pull Out Force
10.19 Tonne Main Winch
0.8 Tonne Wireline Winch
9040mm Mast Length
250kg WLL Jib Crane
Drill Angle of between 45° and vertical
Bean Pump: 170 L/Min (45 US GPM)
![DR800 mk2 DR800 mk2](https://www.mccullochs.com.au/wp-content/uploads/bb-plugin/cache/DR800-mk2-landscape-66064acec3760e7272f25500234021fb-cnftz8ojrpd5.png)
![dr950 nhg dr950 nhg](https://mccullochs1.wpenginepowered.com/wp-content/uploads/2022/09/dr950-nhg.png)

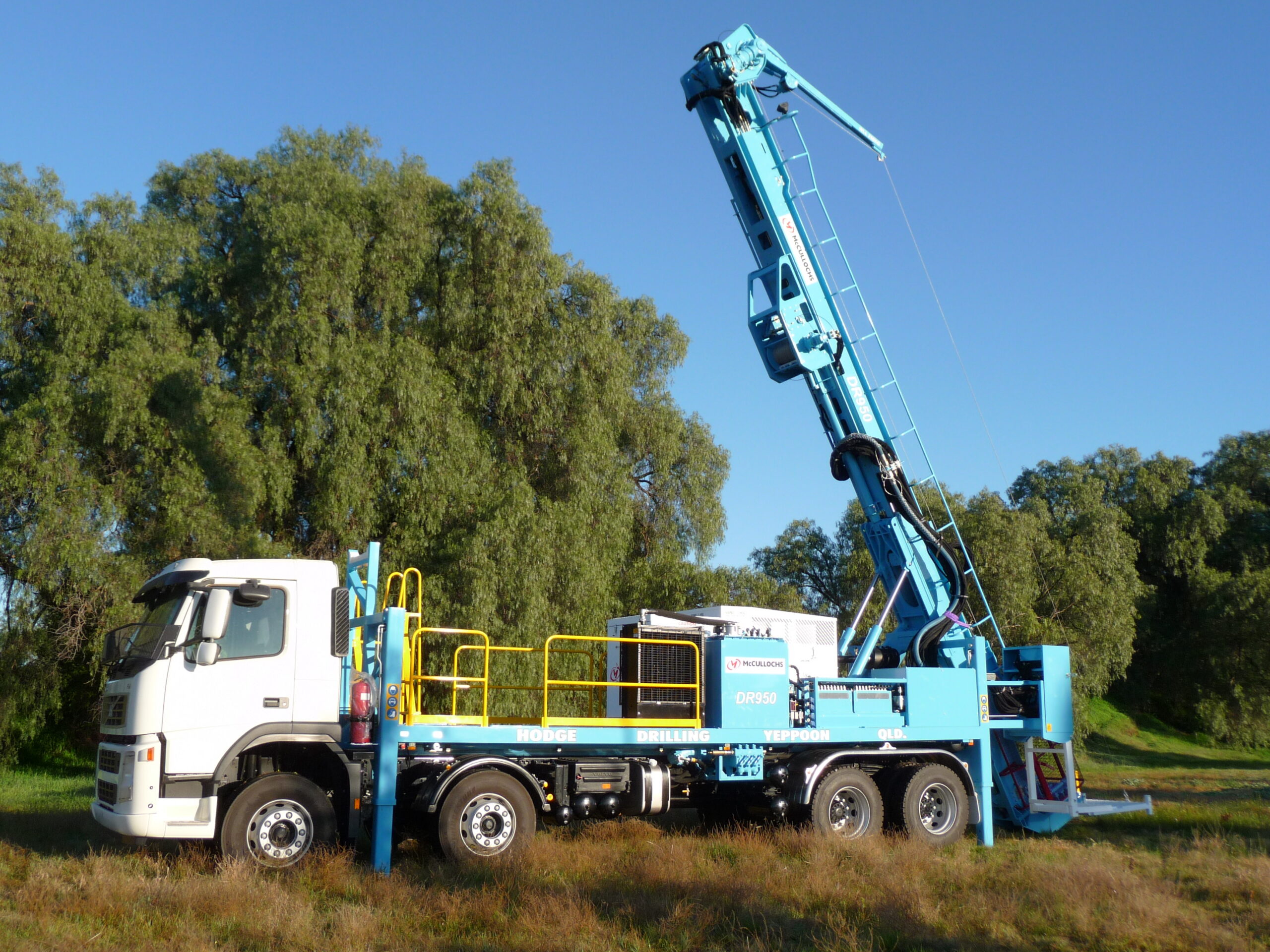

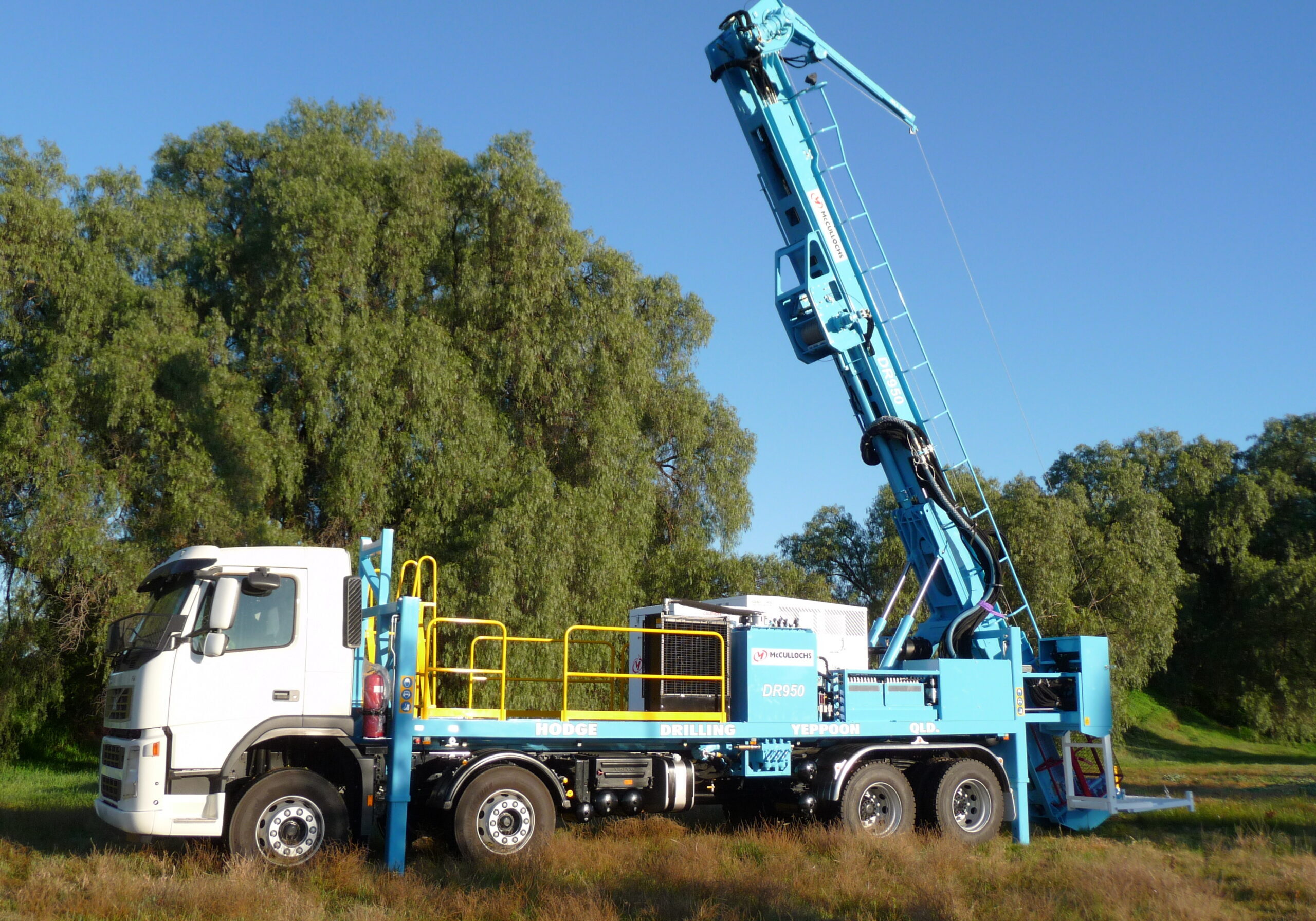

McCULLOCH DR950
Truck or track mounted, the DR950 is a true multi-purpose machine and is an efficient operator for diamond coring, rotary or RC drilling.
Standard Equipment
- Top Head Drive
- Closed Loop Rotation System
- Hydraulic Footclamp
- Dump Mast with 45° Capacity
- High Pressure FMC Pump
- Fold Down Catwalks, Handrails & Ladders
- Rod Guard C/W Slow Rotation Detent
- Jib Crane 250KG Capacity

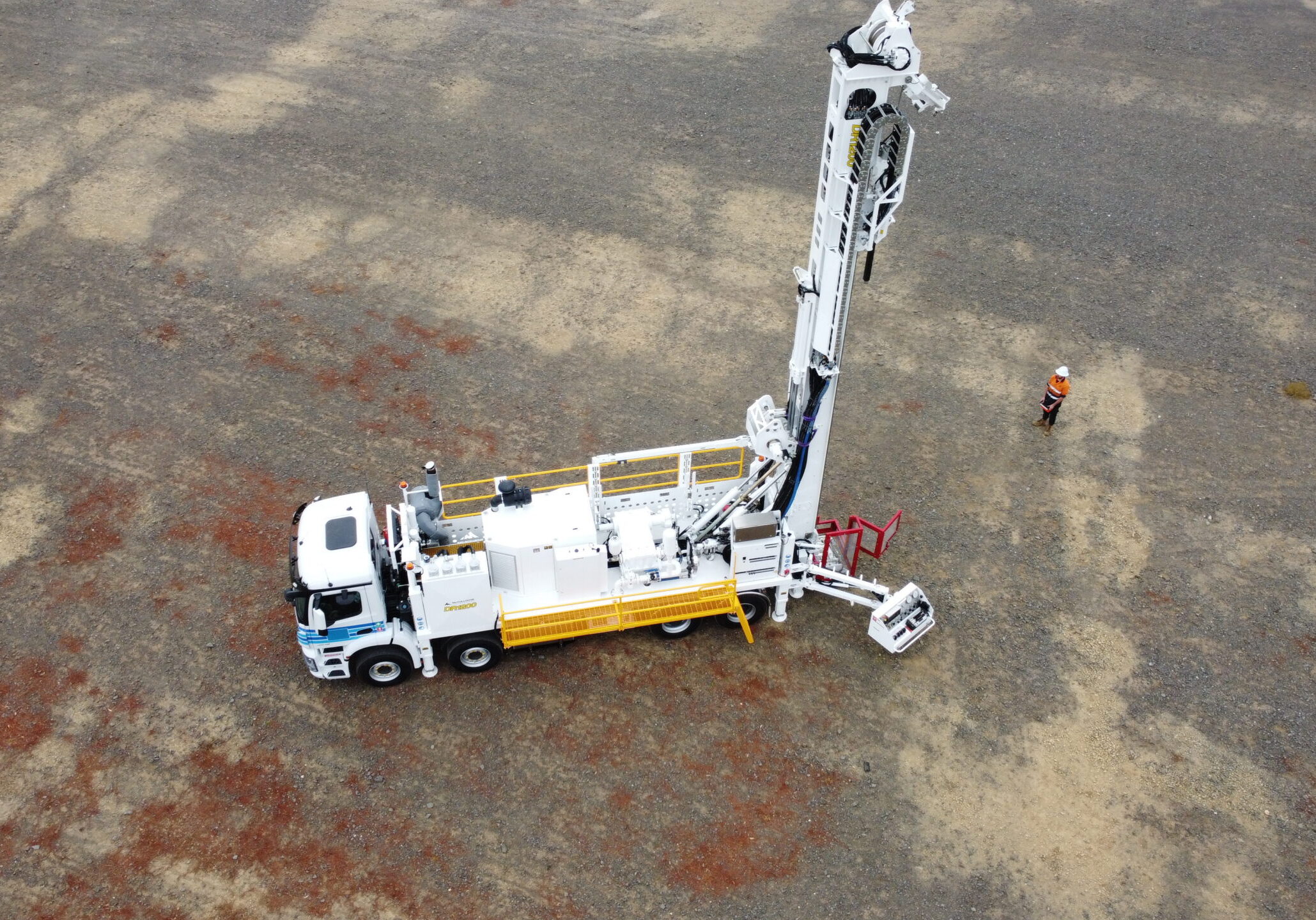

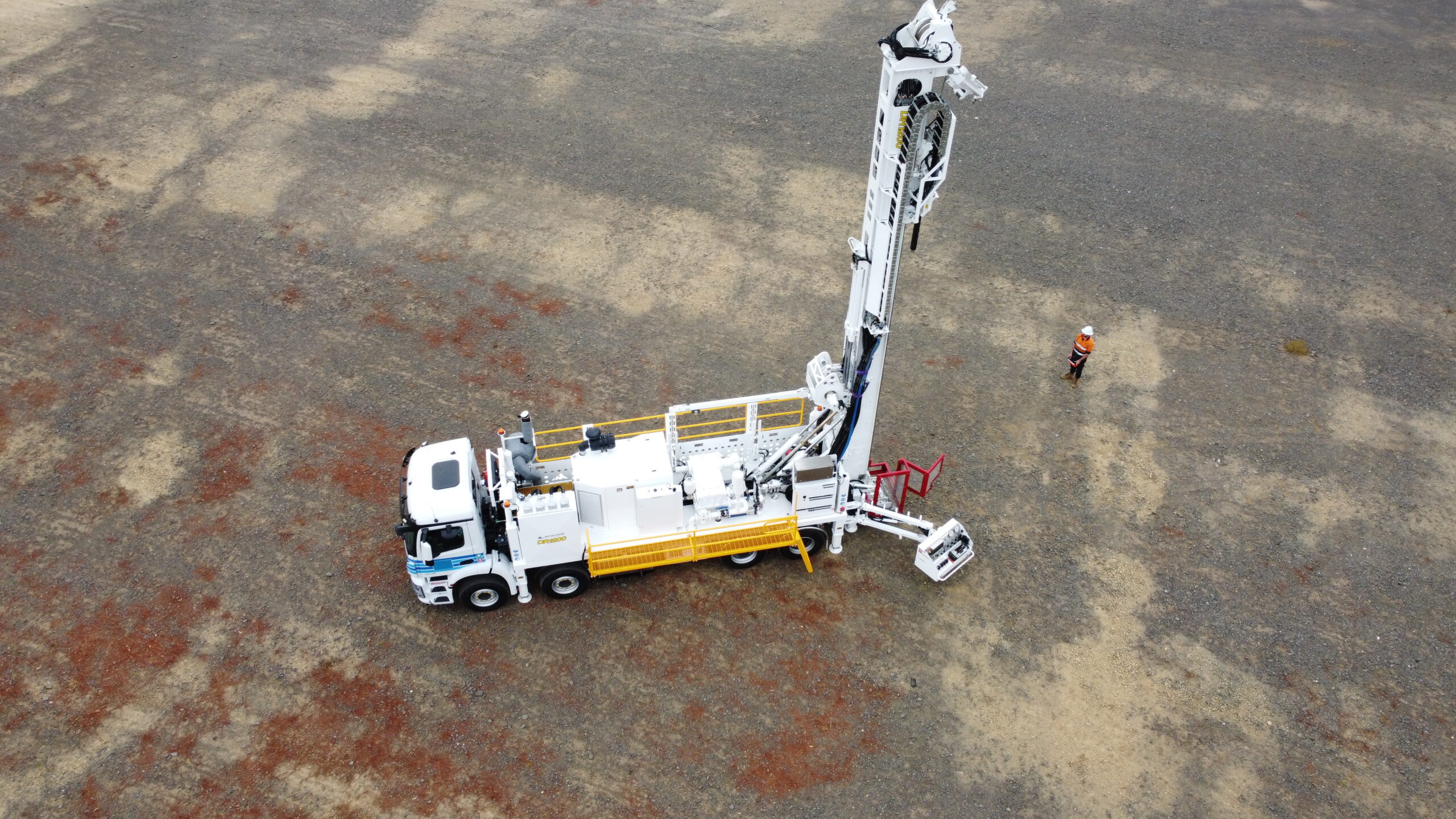

McCULLOCH DR1200
Released in 2022, our largest and most powerful Drill Rig offering, taking orders now!
- 24 Ton Pullback
- 11.5 Ton Pushdown
- 22 Ton Main Winch Max. Pull
- 8M Pull Capacity with main winch
- 2M Traverse stroke
- Jib winch, 250kg capacity
- Cummins QSL9 305 HP Powerpack
- 2-speed McCulloch Top Head Drive
- Rotation 11000 Nm @ 10-100rpm / 1000Nm @ 1200rpm
- All electrical IP67 rated
- Mast dump 1600mm
![DR1200 DR1200](https://www.mccullochs.com.au/wp-content/uploads/bb-plugin/cache/DR1200-landscape-31b9e2d87c46656ec7cdfe523c20f51e-5yrgfj674imu.png)
![Casing Jacks Casing Jacks](https://www.mccullochs.com.au/wp-content/uploads/bb-plugin/cache/Casing-Jacks-landscape-702c2621d600b4b428b76a3cf5e2d101-owiusj4zp08y.png)
ACCESSORIES
SPT Hammers
Casing Jacks
Mud Mixers
Drill rods, carriers & trailers.
We also offer complete Rig rebuilds, modifications and custom turnkey solutions for many different types of rigs and auxillary equipment.
